Schedules & doorbells

A graph normally runs because a person pressed something. Two things let it run without that: a schedule, which fires it on a clock, and a doorbell, which lets a system outside fire it with a signed request.

They are the same question answered from opposite sides, so they live in the same place: Deployments, under What runs on its own. Pick the graph there and both panels are below it — the graph does not have to be deployed, and most graphs with a schedule are not.

That is where deploying lives too, and on purpose: a deployment, a schedule and a doorbell are the three ways a graph goes out into the world without someone pressing run.

Schedules

A schedule is a five-field cron — minute, hour, day of month, month, day of week — plus the time zone it means, and an optional input the run starts with.

1. Open Deployments and pick the graph under What runs on its own.

2. Under Schedules, name it (the morning report), write when (0 9 * * *), and create it.

3. The row shows the cron, the zone, and the next time it will fire.

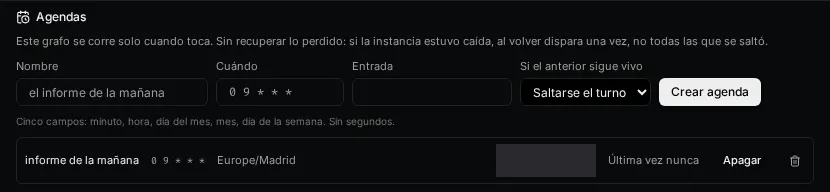

The Schedules panel in Deployments. The next-fire time is masked: it is a real date, and it would change on every capture.

The zone is your browser’s, not UTC. A schedule written for 9 means nine o’clock where the person who wrote it lives; storing UTC would silently run the report an hour off half the year.

No catch-up

If the instance was down over a weekend, the schedule fires once when it comes back — not once per missed turn. On a platform whose bill is tokens, replaying 576 missed ticks is not a recovery, it is an incident.

If the previous run is still alive, a schedule either skips its turn (the default) or queues anyway. There is no third option: everything a trigger can do is enqueue, and from a queued row onward it is the runner that decides how many run at once.

There is deliberately no “fire now” button. Running the graph already has one on the canvas, and a second path here would file a person’s run under the schedule’s name.

A bad cron is answered with an error and the reason, and nothing is saved — a schedule that exists and never runs is harder to understand than one that would not be created.

A schedule that only fails turns itself off

If five runs in a row fail, the schedule switches itself off and the row says why. A run that finishes clears the count, so an occasional failure costs nothing; five consecutive ones mean something that will not fix itself — a graph with no nodes, a key that was revoked, an endpoint that moved.

The count is consecutive, not total: a schedule that has run for a year and failed nine separate times is healthy, and a new one that failed five times running is not.

Switching it back on starts the count from zero — you are saying you fixed it, and the only way to check is to let it try again. The same line carries the reason for the other automatic switch-offs too (a pattern that never occurs again, a cron that stopped parsing), which until now only reached the server log.

Why this exists

Two orphaned schedules in the development workspace ran */5 * * * * against graphs with no nodes from 4 September onwards. Every tick queued a run, every run failed, and the panel kept saying “enabled, next in five minutes”. On a platform whose bill is tokens, a trigger that only ever fails is not noise — it is spend nobody asked for, and nobody could see.

Doorbells

A doorbell is a URL that starts the graph when something outside sends it a signed POST. Whatever the body carries, the graph reads as {'{{body.…}}'} — so an order id posted by your shop arrives as {'{{body.order_id}}'}.

1. Pick the graph in Deployments, and under Doorbells give it a name and open it.

2. Copy the secret and the address. The secret is shown once.

3. On the other side, sign each call and send the signature in a header.

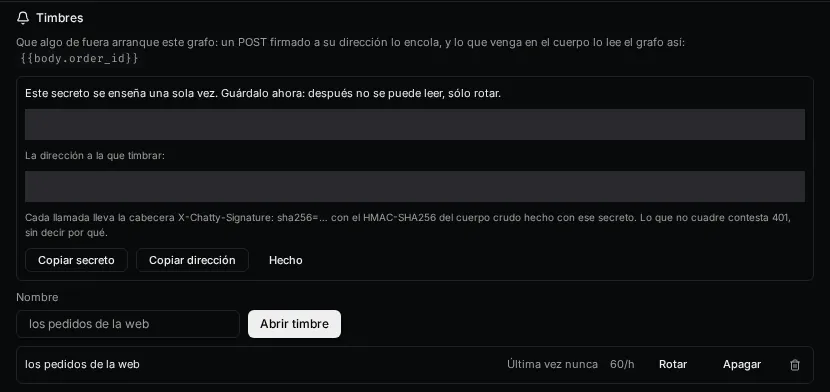

The secret and the address, the one time they are shown. Masked here for the same reason as the date: both differ on every capture.

Signing a call

Every request carries the header:

X-Chatty-Signature: sha256=<HMAC-SHA256 of the raw body, keyed with the secret>

The HMAC covers the raw bytes you send, not a re-serialisation of them: two systems that order JSON keys differently would otherwise produce different signatures for the same object. In shell:

BODY='{"order_id":"A-17"}'
SIG=$(printf '%s' "$BODY" | openssl dgst -sha256 -hmac "$SECRET" -r | cut -d' ' -f1)
curl -X POST "$URL" \
  -H "X-Chatty-Signature: sha256=$SIG" \
  -H 'Content-Type: application/json' \
  -d "$BODY"

A successful ring answers 202 with the run’s id. That means the work is queued, not finished; read the result back from /api/graphs/runs/{id}, which already knows about permissions.

Everything that fails authentication answers the same 401

Unknown doorbell, disabled doorbell, missing header, bad signature: one response for all four. Telling them apart would hand anyone probing the endpoint an oracle. The difference goes to the log, where the person doing the integration can read it and the prober cannot.

The one other answer is 429, and it comes after the signature checks out — see the ceiling below.

How many rings it accepts

Each doorbell takes 60 rings per hour by default, and the panel shows the number beside it. Past that, a ring answers 429 and queues nothing; the count resets an hour after the first ring of the window.

The ceiling is there because a ring is a bill: every one of them queues a run that spends the tokens of whoever opened the doorbell, and the secret lives in someone else’s system — it can leak, and that system can loop. Without a ceiling, a leak and a bug read the same on the invoice.

It is checked after the signature, on purpose. Checking it first would let anyone who knows a doorbell’s id exhaust its owner’s quota without knowing the secret, which trades a spending problem for a denial-of-service one.

If a legitimate integration rings more than that, raise it — the ceiling is a field on the doorbell:

curl -X PATCH "$API/hooks/$HOOK_ID" \
  -H "Authorization: Bearer $TOKEN" \
  -H 'Content-Type: application/json' \
  -d '{"max_rings_per_hour": 600}'

The secret, and rotating it

The secret is shown when the doorbell is opened and when it is rotated, and never again — it is encrypted at rest and not even the API reads it back. A list that could show it again would be a list worth stealing.

Lost it? Rotate. That mints a new one and the old stops working immediately, so anyone still ringing with it is locked out until they are updated. This is what GitHub and Stripe do, for the same reason.

Whose authority does it run with? The person who created the doorbell. Someone outside supplies the body and nothing else — not the graph, not the workspace, not who it acts as. The body is data.

A valid doorbell has no rate limit of its own

A system that rings in a loop queues runs in a loop, and those runs spend the owner’s tokens. Treat the secret accordingly, and disable a doorbell you are not using rather than leaving it open.

Seeing everything at once

The Studio catalog has an Automations section listing every schedule and every doorbell in the workspace, whichever graph it belongs to, with what runs it and when it last fired.

Nothing is created there — a row links back to Deployments with its graph already picked, which is where they are edited. It answers the other question: what fires in this workspace without anyone asking?
